The Functions of Schottky Diode

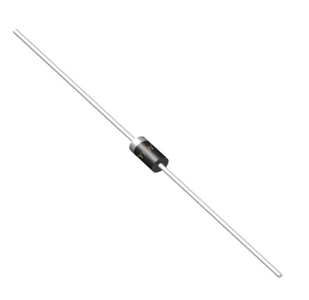

Schottky diodes, also known as Schottky barrier diodes or hot-carrier diodes, play a crucial role in various electronic circuits due to their unique characteristics and diverse functions.

One of the primary functions of Schottky diodes is rectification. In power supply circuits, they can convert alternating current (AC) to direct current (DC). Compared to traditional silicon p-n junction diodes, Schottky diodes have a lower forward voltage drop, typically around 0.3 to 0.5 volts, which reduces power loss and improves the efficiency of the rectification process. This makes them particularly suitable for low-voltage and high-current applications where minimizing energy dissipation is essential.

Schottky diodes are also widely used in switching applications. Their fast switching speed, resulting from the absence of a significant charge storage effect, allows them to quickly turn on and off. This feature is highly valuable in high-frequency circuits, such as in switching power supplies, radio frequency (RF) applications, and digital circuits. In switching power supplies, the fast switching capability of Schottky diodes helps to reduce switching losses and enable higher switching frequencies, leading to smaller and more efficient power supply designs.
