Thermal Management and Overload Protection

Date：2025-06-10 Categories：Product knowledge Hits：140 From：Guangdong Youfeng Microelectronics Co., Ltd

6.1 Heat Sink Selection

Calculate the required thermal resistance (θJA) using θJA ≤ (TJ(max) - TA)/PD, where TJ(max) = 150°C (silicon), TA = 50°C, and PD = IC × VCE. For PD = 1W, θJA ≤ (150-50)/1 = 100°C/W. A TO-92 package has θJA ≈ 150°C/W, so add a heat sink to reduce θJA to <100°C/W.

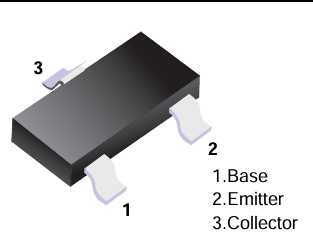

6.2 Overcurrent Protection Small Signal Transistors

Add a current-limiting resistor (e.g., 0.1Ω/2W) in the emitter for high-power applications, or use a PTC thermistor in the supply line to automatically limit current during faults.

7. Troubleshooting and Performance Optimization

7.1 Common Faults and Fixes Small Signal Transistors

Issue	Possible Cause	Solution
No output signal	Open base resistor	Replace resistor; check solder joints
Distorted output	Incorrect biasing (clipping)	Readjust R1/R2 for mid-supply VCEQ
Excessive noise	High collector resistance	Lower RC; add bypass capacitor to RE

7.2 Performance Tuning

Bandwidth Extension: For wideband amplifiers, use a shunt-peaking inductor in series with RC to compensate for parasitic capacitances.

Linearity Improvement: Add local negative feedback (e.g., 10–100Ω in emitter) to reduce harmonic distortion.

8. Application-Specific Tips Small Signal Transistors

8.1 Audio Amplifiers

Use Darlington pairs (e.g., TIP120) for higher current gain in low-power audio stages.

Implement a bootstrap capacitor across RC to increase input impedance and improve voltage gain.

8.2 Digital Logic Interfaces

To interface 5V logic to 3.3V circuits, use a PNP transistor as a level shifter: connect base to 5V logic, emitter to 3.3V supply, and collector to the 3.3V load. Small Signal Transistors

By integrating these skills, you can design robust circuits that maximize the performance of small signal transistors while mitigating common pitfalls. Always verify designs with simulation (e.g., LTSpice) before prototyping, and optimize for the specific requirements of your application (voltage, frequency, and reliability needs). Small Signal Transistors
