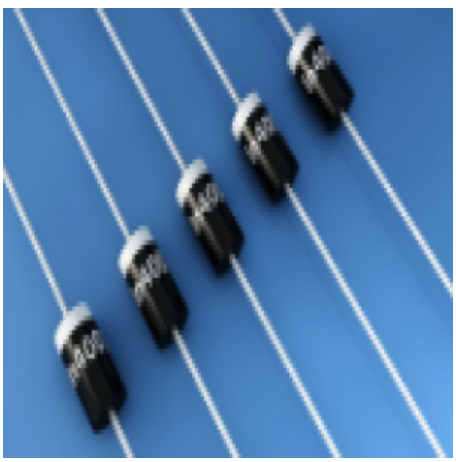

What is a freewheeling diode, its structure, principle, function, type, operating procedures, and development history 2

5、 Operating procedures:

The correct operation of the freewheeling diode is crucial for ensuring the safe and stable operation of the circuit. The following are the basic procedures for operating a freewheeling diode:

1. Installation: When installing a freewheeling diode, attention should be paid to the connection direction of its positive and negative poles. Proper connection can ensure its normal operation and avoid damaging components due to reverse connection.

2. Working conditions: The freewheeling diode should operate within the specified operating voltage and current range, as exceeding these ranges may result in component damage. In addition, it should be avoided to use in high temperature or humid environments to ensure its performance and lifespan.

3. Thermal design: When designing circuits, the thermal design of freewheeling diode should be considered to ensure effective heat dissipation. Excessive temperature can affect the reliability and performance of components.

4. Insulation protection: To avoid external damage or dust pollution to the freewheeling diode, it is recommended to install appropriate insulation protection measures during use, such as a casing or casing cover.

5. Precautions: When operating the freewheeling diode, avoid overloading or short circuiting, promptly handle any abnormal situations that may occur in the circuit, and avoid damaging the freewheeling diode.
