Circuit Design Considerations

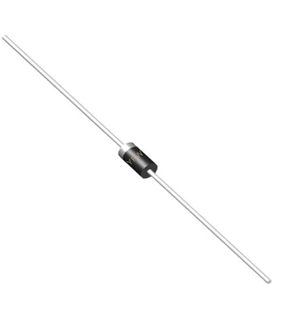

In circuit design, place the Fast recovery diodes as close as possible to the switching device (such as a transistor or MOSFET) to minimize parasitic inductance, which can cause voltage spikes. When using FRDs in rectifier circuits, ensure they are connected in the correct polarity to allow current flow in the desired direction. In snubber circuits, which are used to suppress voltage transients, the FRD should be paired with a capacitor and a resistor appropriately. The capacitor value depends on the rate of voltage change (dv/dt), while the resistor limits the discharge current of the capacitor.

Thermal Management

Fast recovery diodes generate heat during operation, so effective thermal management is necessary. Use a suitable heat sink if the power dissipation exceeds the diode's rating. Ensure proper airflow around the diode and heat sink to facilitate heat dissipation. Thermal grease can be applied between the diode and the heat sink to improve thermal conductivity. Regularly monitor the temperature of the diode to ensure it stays within the specified operating range.
